Mass Flow Tester CETATEST 625
The CETATEST 625 mass flow tester is used for quality assurance in the production process. The testing method is based on the measurement of the mass flow rate according to the calorimetric (thermal) principle.
Depending on the technical design (measuring range of the mass flow sensor), the CETATEST 625 can be used for leak testing large-volume products with small leak rates or for measuring larger mass flow rates (up to 60 Nl/min).
The integrated 7-inch touch screen with intuitive, user interface provides a wide range of information (e.g. measurement curve display, histograms).
The integrated 7-inch touch screen with intuitive, user interface provides a wide range of information (e.g. measurement curve display, histograms). The test device can be operated via touch screen and a dual jog dial. Separate start/stop buttons ensure operating safety even in harsh industrial environments.
More than one million measurement results and 256 individually parameterisable test programs with alphanumeric designations can be stored

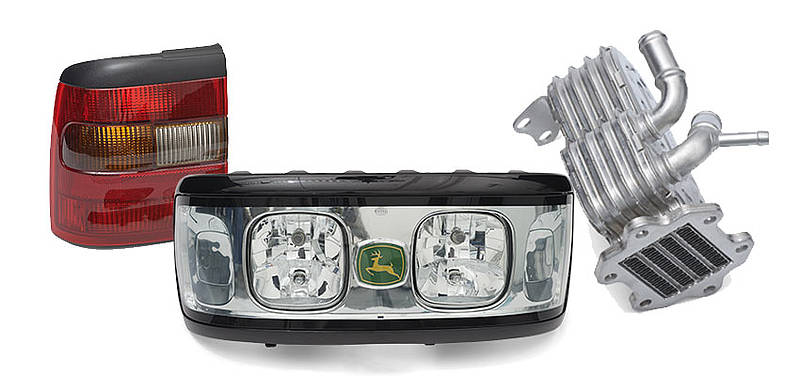

In the right picture: Examples of test parts that CETA customers test with the CETATEST 625.
| Sensors | Gauge sensor, thermal mass flow sensor |
| Pressure ranges | 200 mbar, 1.000 mbar, 6 bar, 10 bar, other ranges on request |
| Measurement ranges | 0,2 - 10 Nml/min, 0,5 - 25 Nml/min, 1,2 – 60 Nml/min, 3 - 150 Nml/min, 6 - 300 Nml/min, 12 - 600 Nml/min, 1,2 – 60 Nl/min |
| Result units | Nml/min, Nml/h, Nl/min, Nl/h, scc/min, scc/h, sl/min, sl/h, mbar•l/s |
| Operation modes | Indirect mode: Indirect pressurisation via reservoir for small mass flow rates (up to 60 Nml/min) |
| Direct mode: Direct pressurization via pressure regulator (from 60 Nml/min) | |
| Interfaces | I/O interface for start/stop/reset, program selection, device status, system errors, test results (pass/fail) RS-232, USB (host), Ethernet and optional interfaces allow additional functions like parameterisation, measurement results, detailed information in real time (e. g. measurement curve), failure messages. |
| Optional: Profibus DP, Profinet, EtherCAT, USB (Slave) | |
| The CETATEST 625 is fully interface compatible with the CETATEST 615 and well prepared for Industry 4.0 requirements | |
| Dimensions | 367 mm x 183 mm (4 U) x 435 mm (W x H x D) |
| Typical applications | Big headlights and lamps, oil and water circuits |
Remark
All leak and flow testers as well as pressure manometers and calibration standards (test leaks, master jets) are supplied with DAkkS-accredited and internationally recognized calibration certificate (compliant with DIN EN ISO/IEC 17025) as standard and at no extra charge on initial delivery. (*)
This calibration also meets the requirements of the international IATF 16949 standard used in the automotive industry.
(*) Prerequisite: The pressure and flow ranges are within the accredited scope of services of the DAkkS-accredited calibration laboratory of CETA Testsysteme GmbH.
DAkkS = German Accreditation Body
