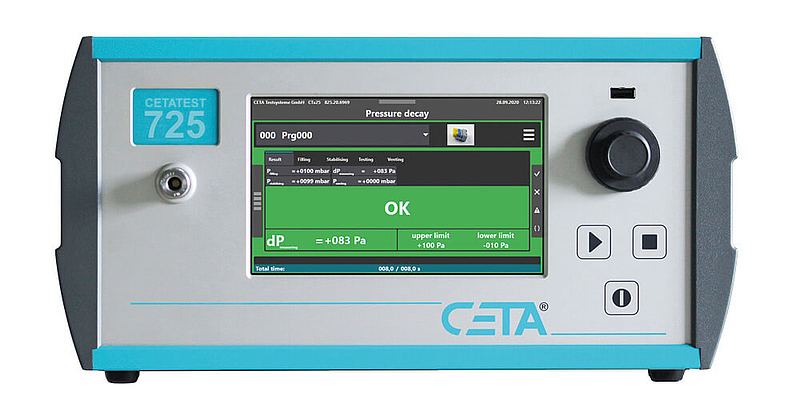

Leak Tester CETATEST 725
The CETATEST 725 is a full automatically working leak tester for the detection of untight parts within the cycle time of the production process. The leak tester uses a gauge pressure sensor and has a large measurement range.
The integrated 7-inch touch-screen with an intuitive operable graphical user interface makes it possible to display a wide range of information (e.g. measurement curves, histograms). Operation is possible both via the touch-screen and via a dual-jog dial. Separate start / stop buttons ensure operating safety even in harsh industrial environments.
The memory stores more than 1 million measurement results and 256 test programs.
Sensor type | Gauge pressure sensor |
Pressure ranges | -1 bar, 200 mbar, 1 bar, 6 bar, 10 bar, negative gauge pressure and positive gauge pressure ranges can be combined (e.g. -1 bar/+1 bar, -1 bar/+6 bar) |
Measurement range | Max. +/-10,000 Pa, depending on the pressure range (resolution: 1 Pa) |
Result units | Pa, hPa, PSI, Pa/s, hPa/s, mbar*l/s, ml/min, ml/h, l/min, l/h, mmHg, mmWs, Torr |
Pressure regulator | Electronical |
Test mode | Pressure decay test |
Test modes optional | Sealed component, dynamic pressure, pressure steps |
Interfaces | I/O interface for start/stop/reset, program selection, device status, system errors, test results (pass/fail). RS-232, USB (host), Ethernet and optional interfaces allow additional functions like parameterisation, measurement results, detailed information in real time (e.g. measurement curve), failure messages. Optional interfaces: Profibus DP, Profinet, EtherCAT or USB (Slave) |
Dimensions | W x H x D: 367 mm x 183 mm (4 U) x 435 mm |
Typical applications | Tests of sanitary armatures, plastic weldings, ball valves |
