Leak Tester CETATEST XS
The CETATEST XS is a compact, cost-effective and full automatically working leak tester for the detection of untight parts within the cycle time of the production process. The leak tester uses a gauge pressure sensor for the measurement of the pressure loss caused by the leakage in the test part.

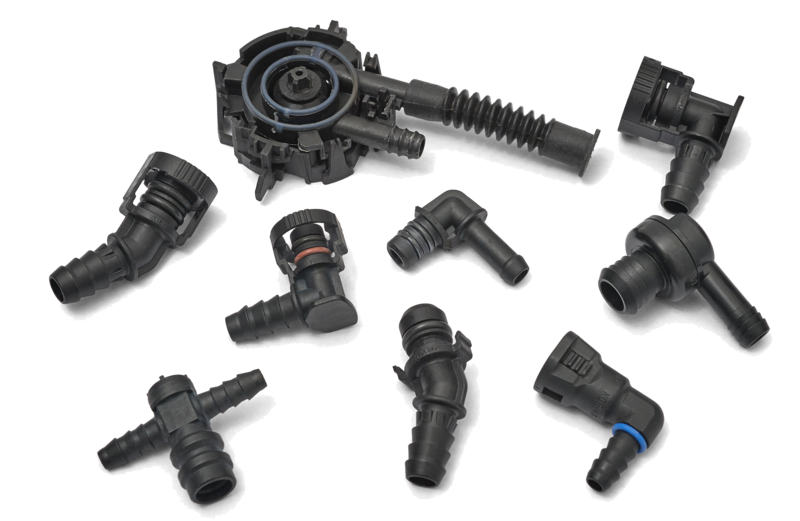

In the right picture: Examples of test parts that CETA customers check with the CETATEST XS.
| Pressure sensor | Gauge pressure sensor |
| Pressure ranges | Internal electronically regulated: -1 bar / +1 bar | 0.010 - 0.200 bar | 0.020 - 1.000 bar | 0.20 - 8.00 bar (external pressure regulation as option) |
| Measurement ranges | ± 2,500 Pa | ± 9,999 Pa / ± 25.0 hPa | ± 99.9 hPa (depending on the pressure range) |
| Result units | Pa, hPa (pressure loss), bar (test pressure) |
| Test mode | Pressure decay |
| Dimensions | 280 mm x 96 mm x 250 mm (W x H x D) |
| Typical applications | Leak tests which require a large measuring range |
Remark
All leak and flow testers as well as pressure manometers and calibration standards (test leaks, master jets) are supplied with DAkkS-accredited and internationally recognized calibration certificate (compliant with DIN EN ISO/IEC 17025) as standard and at no extra charge on initial delivery. (*)
This calibration also meets the requirements of the international IATF 16949 standard used in the automotive industry.
(*) Prerequisite: The pressure and flow ranges are within the accredited scope of services of the DAkkS-accredited calibration laboratory of CETA Testsysteme GmbH.
DAkkS = German Accreditation Body
