Flow Tester CETATEST 925
The CETA flow testers can be used to measure volume flow rates using compressed air as test medium. The measuring method uses the fact that the pressure difference between two measuring points in a laminar flow is directly proportional to the volume flow. By using suitable laminar flow elements, a wide range of flow rates can be measured.
The special variant CETATEST 925 LP (Low Pressure) is particularly suitable for measuring large volume flows at very low test pressures (up to 10 mbar).

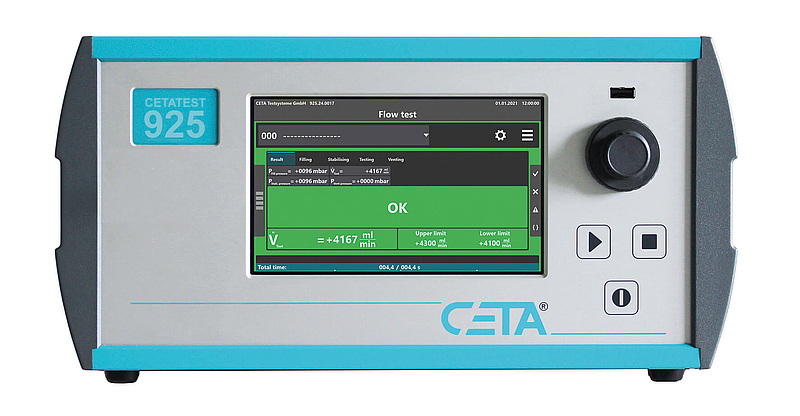

The integrated 7-inch touch screen with intuitive, user interface provides a wide range of information (e.g. measurement curve display, histograms). The test device can be operated via touch screen and dual jog dial. Separate start/stop buttons ensure operating safety even in harsh industrial environments.
The memory capacity is sufficient for more than 1 million measured values and 256 test programs.
In the right picture: Examples of test parts that CETA customers test with the CETATEST 925.
| Pressure sensors | Gauge pressure sensor (test pressure), Differential pressure sensor (pressure difference at LFE) |
| Pressure ranges | CETATEST 925 Standard: |
| Electronical pressure regulator (EPR): -1 bar, -1/+1 bar, -1/+6 bar, 200 mbar, 1 bar, 6 bar | |
| Mechanical pressure regulator (MPR): -1 bar, -1000 mbar/+150 mbar, 150 mbar, 1 bar, 6 bar | |
| Other ranges on request | |
| CETATEST 925 LP: 10 mbar (pressure generation and electronic pressure control via radial fan) | |
| Measurement range | CETATEST 925 Standard: 3 ml/min to 200 l/min (depending on the laminar flow element) |
| CETATEST 925 LP: 20 l/min to max. 210 l/min (depending on test pressure) | |
| Result units | ml/min, ml/h, l/min, l/h, mbar*l/s |
| Test modes / Additional functions | Standard: Direct method, nominal pressure optimisation. |
| With EPR: prefill, pulsing, smooth filling | |
| Optional: Indirect method, bypass, program series, exponential extrapolation, free programmable control valves | |
| Interfaces | I/O interface for start/stop/reset, program selection, device status, system errors, test results (pass/fail) |
| RS-232, USB (host), Ethernet and optional interfaces allow additional functions like parameterisation, measurement results, detailed information in real time (e. g. measurement curve), failure messages | |
| Optional: Profibus DP, Profinet, EtherCAT, USB (Slave) | |
| The CETATEST 925 and CETATEST 925 LP are fully interface compatible with the CETATEST 915 and CETATEST 915 LP and well prepared for Industry 4.0 requirements | |
| Dimensions | 367 mm x 183 mm (4 HE) x 435 mm (W x H x D) |
| Typical applications | Valves, exhaust gas systems, pipes, membranes |
Remark
All leak and flow testers as well as pressure manometers and calibration standards (test leaks, master jets) are supplied with DAkkS-accredited and internationally recognized calibration certificate (compliant with DIN EN ISO/IEC 17025) as standard and at no extra charge on initial delivery. (*)
This calibration also meets the requirements of the international IATF 16949 standard used in the automotive industry.
(*) Prerequisite: The pressure and flow ranges are within the accredited scope of services of the DAkkS-accredited calibration laboratory of CETA Testsysteme GmbH.
DAkkS = German Accreditation Body
